Technical data:
- Brand: Nivel System
- Operating temperature range:
- -20°C to +50°C
- Leveling accuracy:
- ± 1.0 mm/10 m
- Plane inclination: ± 10% (X axis. Y axis).
- Manual
- Scanning: 0-10°-45°-90°-180°
The lowest price of the product zł3,184.47 in day 31.10.2025
Lowest price in the last 30 days
W ratach już od:
63.6894 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę
×Exporting Data
The content of this cell is too long for an XLSX file (more than 32767 characters).
Please use the CSV format for this export.
Data sheet
| Ciężar | 3 kg |
|---|---|
| Wymiary | 206 x 206 x 211 mm |
| Marka | Nivel system |
| Zasilanie | Dc 8.4v (1000ma). akumulatorki li-ion 7.4v (4000mah) |
| Zakres temperatur pracy | -20°c do +50°c |
| Dokładność poziomowania | ± 1.0 mm/10 m |
| Pochylenie płaszczyzn | ± 10% (oś x. oś y). manualne |

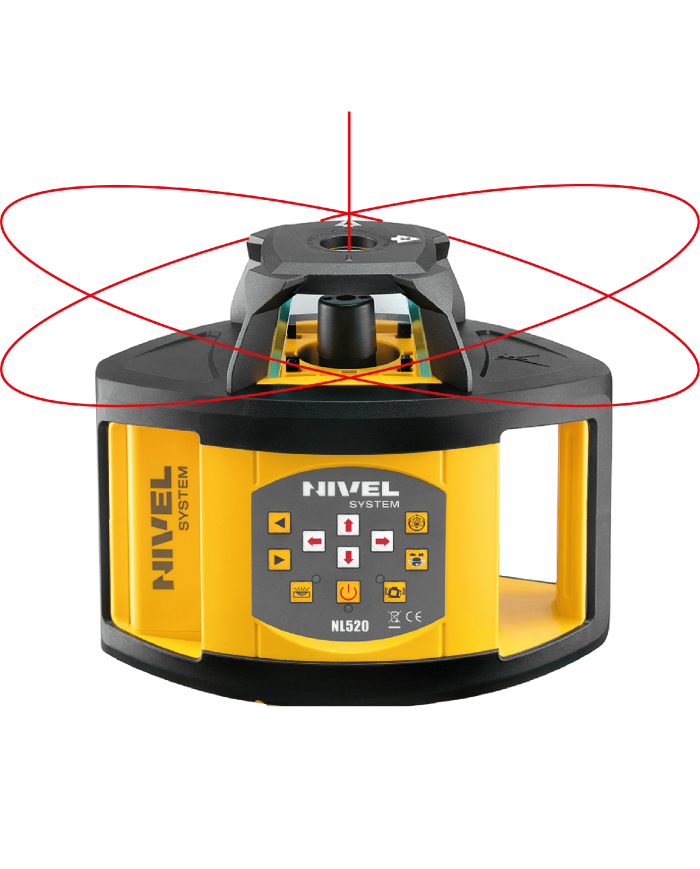

| Generowane płaszczyzny | 1 x poziomo (360°). 1 x pionowo (360°) |
| Zasięg pracy | 500m (średnica) |
| Rodzaj wiązki lasera | Laser czerwony (635 nm). klasa 2 |
| Klasa odporności | Ip54 |
| Kolor lasera | Czerwony |
| Skanowanie | 0-10°-45°-90°-180° |
| Prędkość wirowania głowicy | Zmienna. maks. 600 obr./min |
| Pilot zdalnego sterowania | Tak (podczerwień) |
Reviews
No customer reviews for the moment.

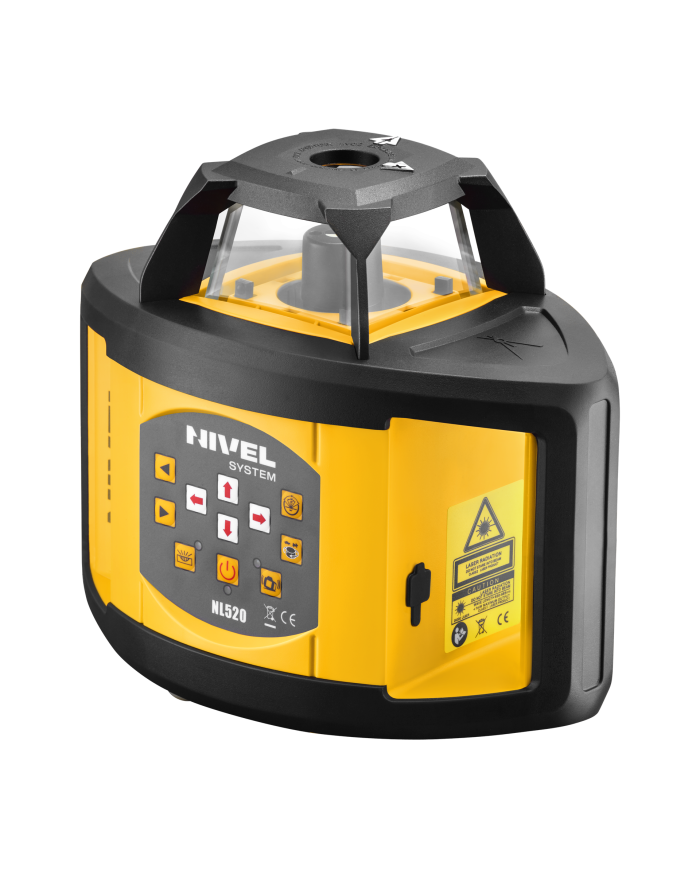

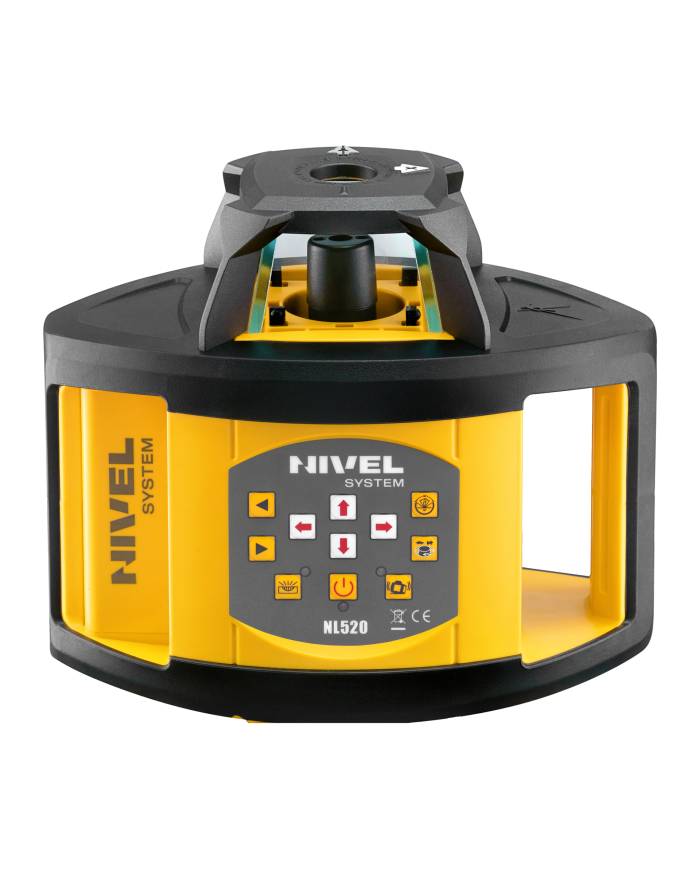

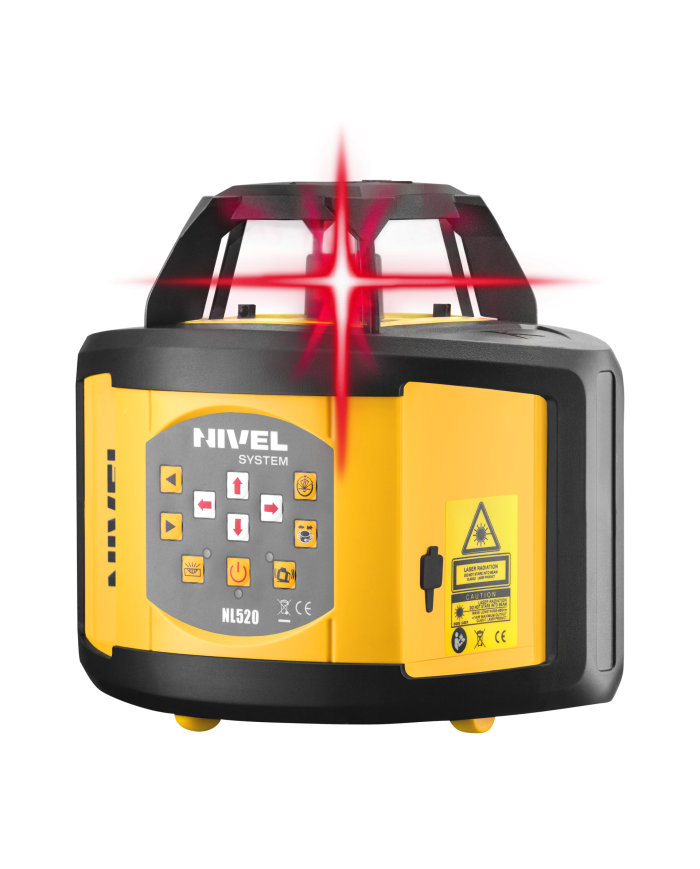

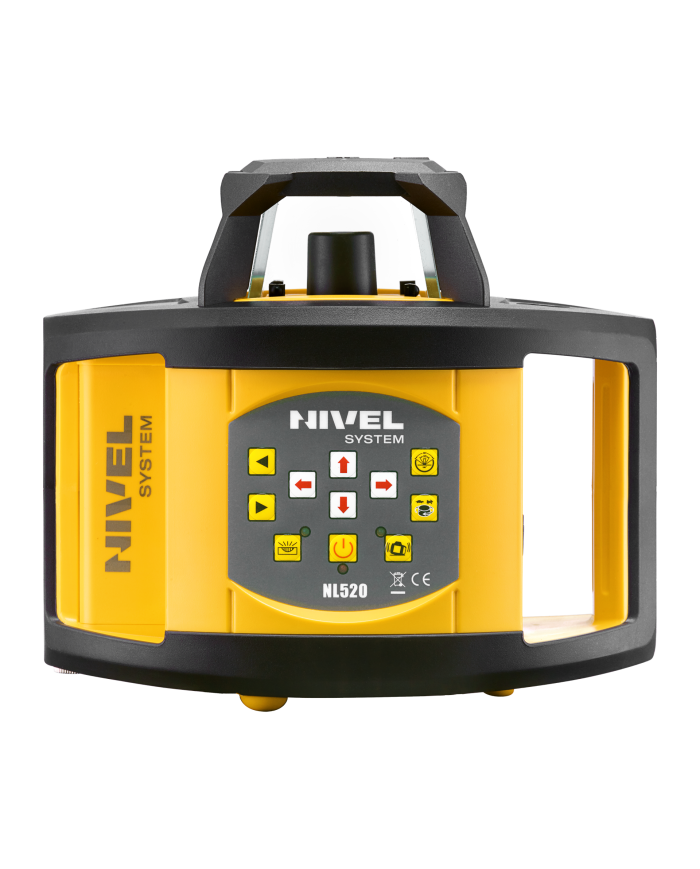

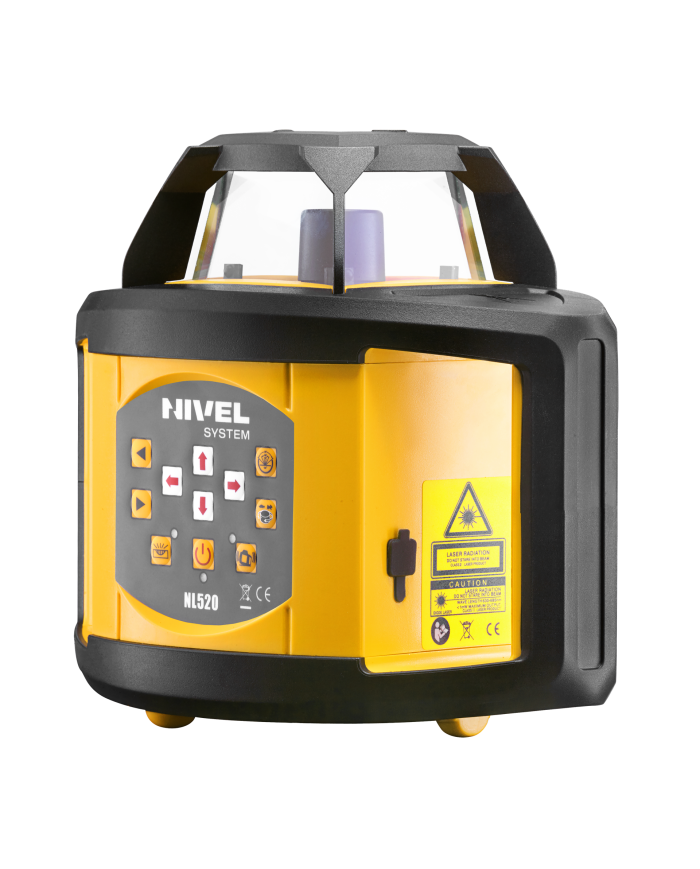

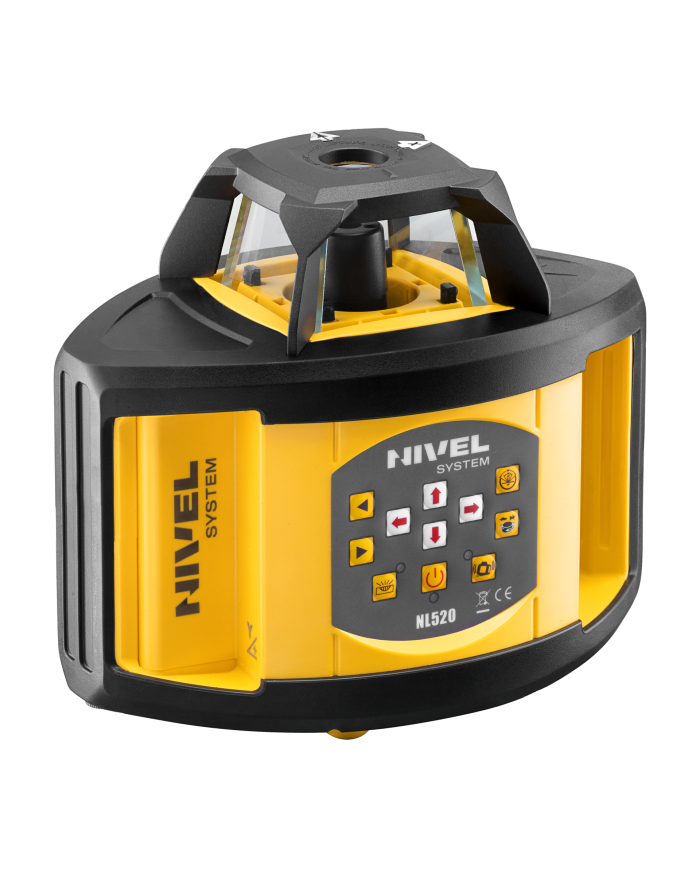

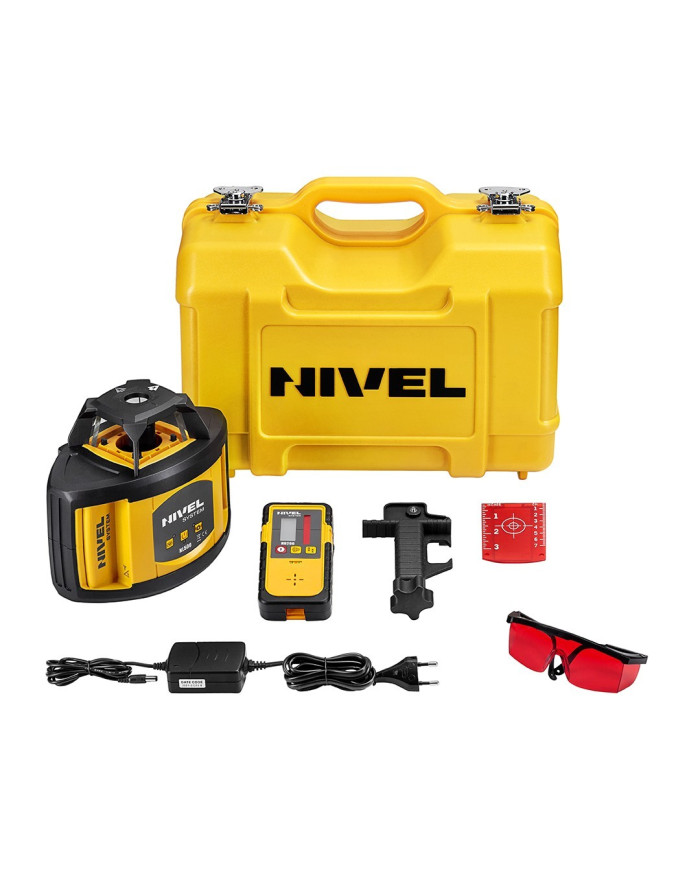

You're reviewing “Nivel System NL520 self-levelling rotary laser leveler”
Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia
Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.
Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
